[XR Interaction Toolkit 2.4.3] Custom Hand Grab Pose

VR/XR Interaction Toolkit 2023. 12. 27. 15:59

핸드 모델 붙이기

https://youtube.com/playlist?list=PLTFRwWXfOIYBIPKhWi-ZO_ITXqtNuqj6j&si=XhyHS26tNDP6u7CA

XR Interaction Toolkit 2.4.3

XR Interaction Toolkit 2.4.3 OpenXR Oculus

www.youtube.com

새 씬을 만들고 메인 카메라를 지우고 XR Origin을 생성 합니다.

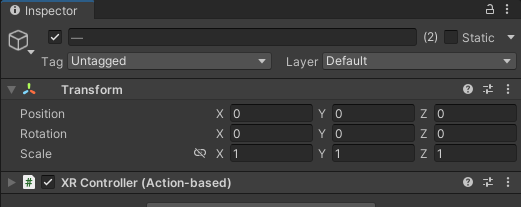

Left / Right Controller 오브젝트를 선택 하고 XR Controller를 제외한 나머지를 제거 합니다.

다음 구조로 만들어 주고

Left Controller Model을 넣어 줍니다.

오른손도 똑같이 해줍니다.

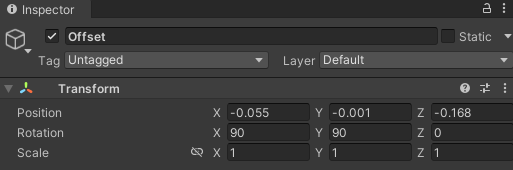

Offset설정을 해줍니다

오브젝트 잡기 만들기

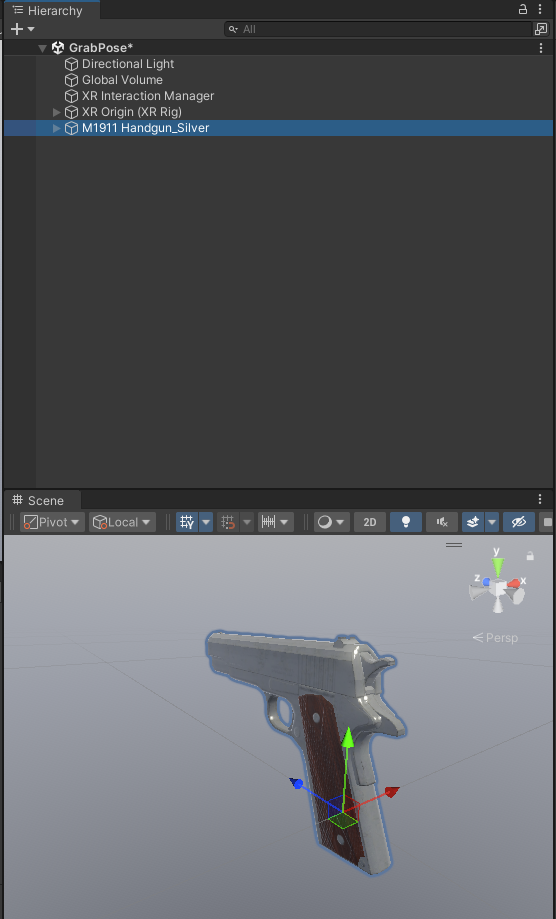

총 프리팹을 가져와서 언팩 하고

Model을 선택해서 애니메이터를 제거 하고

다음 구조로 만들어 주고

Gun을 선택해서 Rigidbody와 XR Grab Interactable컴포넌트를 부착 하고 다음과 같이 설정 한다

Left / Right Controller 를 선택하고

XR Direct Interactor 컴포넌트를 부착 하고 Manager를 넣어준다

Gun을 선택 하고 Collider를 만들어주고 크기를 조절 한다

Is Trigger를 체크 한다

Left / Right Controller를 선택하고 Sphere Collider를 추가 한다 Radius의 값은 0.1로 설정 한다

Gun을 선택하고 XR Grab Interactable의 Colliders에 Collider를 넣어준다

Gun의 위치를 설정 하고

그랩이 잘 되는지 확인 한다
손의 Offset위치에 따라 잡는 위치가 달라지니 적당히 조절 한다

커스텀 핸드 포즈 만들기

Gun을 선택 하고
빈오브젝트를 만들고 (Hand Pose)
그 자식으로 핸드 프리팹을 넣어준다

Animator와 Hand컴포넌트는 제거 한다

쉽지 않겠지만 손의 포즈를 잡아 준다

스크립트 작성

HandData스크립트를 생성하고 다음과 같이 작성한다

using System;
using System.Collections;
using System.Collections.Generic;
using UnityEditor;
using UnityEngine;
using UnityEngine.XR.Hands;

public class HandData : MonoBehaviour
{
    public enum HandType
    {
        Left, Right
    }

    public HandType handType;
    public Transform root;
    public Animator anim;
    public Transform[] bones;

}

핸드 프리팹에 부착 한다

프로퍼티에 오브젝트를 넣어주고

자물쇠로 잠그고

다음 오브젝트들을 선택하고

Bones에 넣어준다

HandPose 스크립트를 생성하고 다음과 같이 작성한다

using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using UnityEngine.XR.Interaction.Toolkit;

public class HandPose : MonoBehaviour
{
    public HandData leftHandData;
    void Start()
    {
        XRGrabInteractable grabInteractable = GetComponent<XRGrabInteractable>();

        grabInteractable.selectEntered.AddListener(this.SetupPose);

        //leftHandData.gameObject.SetActive(false);
    }

    private void SetupPose(SelectEnterEventArgs arg0)
    {
        Debug.LogFormat("SetupPose: <color=yellow>{0}</color>", arg0.interactorObject.transform.name);
        HandData handData = arg0.interactorObject.transform.GetComponentInChildren<HandData>();
        handData.anim.enabled = false;
        handData.gameObject.SetActive(false);
    }
}

Gun을 선택하고 HandPose 를 부착 한다

Hand Data에는 다음 오브젝트를 넣어준다

실행후 왼손으로 테스트 해본다

핸드의 값 적용하기

using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using UnityEngine.XR.Interaction.Toolkit;

public class HandPose : MonoBehaviour
{
    public HandData leftHandData;

    private Vector3 startingHandPosition;
    private Vector3 finalHandPosition;
    private Quaternion startingHandRotation;
    private Quaternion finalHandRotation;
    private Quaternion[] startingFingerRotaions;
    private Quaternion[] finalFingerRotations;

    void Start()
    {
        XRGrabInteractable grabInteractable = GetComponent<XRGrabInteractable>();

        grabInteractable.selectEntered.AddListener(this.SetupPose);

        //leftHandData.gameObject.SetActive(false);
    }

    private void SetupPose(SelectEnterEventArgs arg0)
    {
        Debug.LogFormat("SetupPose");

        if (arg0.interactorObject is XRDirectInteractor)
        {
            Debug.LogFormat("SetupPose: <color=yellow>{0}</color>", arg0.interactorObject.transform.name);
            HandData handData = arg0.interactorObject.transform.GetComponentInChildren<HandData>();
            handData.anim.enabled = false;
            //handData.gameObject.SetActive(false);

            SetHandDataValues(handData, leftHandData);
            SetHandData(handData, finalHandPosition, finalHandRotation, finalFingerRotations);
        }

    }

    public void SetHandDataValues(HandData h1, HandData h2)
    {
        startingHandPosition = h1.root.localPosition;
        finalHandPosition = h2.root.localPosition;

        startingHandRotation = h1.root.localRotation;
        finalHandRotation = h2.root.rotation;

        startingFingerRotaions = new Quaternion[h1.bones.Length];
        finalFingerRotations = new Quaternion[h2.bones.Length];

        for (int i = 0; i < h1.bones.Length; i++)
        {
            startingFingerRotaions[i] = h1.bones[i].localRotation;
            finalFingerRotations[i] = h2.bones[i].localRotation;
        }
    }

    public void SetHandData(HandData handData, Vector3 newPosition, Quaternion newRotation, Quaternion[] newBonesRotation)
    {
        handData.root.localPosition = newPosition;
        handData.root.localRotation = newRotation;
        for (int i = 0; i < newBonesRotation.Length; i++)
        {
            handData.bones[i].localRotation = newBonesRotation[i];
        }
    }
}

다음 코드로 수정 한다

using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using UnityEngine.XR.Interaction.Toolkit;

public class HandPose : MonoBehaviour
{
    public HandData leftHandData;

    private Vector3 initialHandPosition = Vector3.zero;
    private Vector3 targetHandPosition = Vector3.zero;
    private Quaternion initialHandRotation = Quaternion.identity;
    private Quaternion targetHandRotation = Quaternion.identity;
    private Quaternion[] initialFingerRotations;
    private Quaternion[] targetFingerRotations;

    private void Start()
    {
        XRGrabInteractable grabInteractable = GetComponent<XRGrabInteractable>();

        grabInteractable.selectEntered.AddListener(SetupPose);
        grabInteractable.selectExited.AddListener(UnSetPose);

        // leftHandData.gameObject.SetActive(false);
    }

    private void UnSetPose(SelectExitEventArgs arg0)
    {
        if (arg0.interactorObject is XRDirectInteractor)
        {
            Debug.LogFormat("<color=lime>[UnSetPose]</color> : {0}", arg0.interactorObject.transform.name);
            HandData handData = arg0.interactorObject.transform.GetComponentInChildren<HandData>();
            EnableHandDataAnimation(handData);
            SetHandData(handData, initialHandPosition, initialHandRotation, initialFingerRotations);
        }
    }

    private void SetupPose(SelectEnterEventArgs arg0)
    {
        if (arg0.interactorObject is XRDirectInteractor)
        {
            Debug.LogFormat("<color=yellow>[SetupPose]</color> : {0}", arg0.interactorObject.transform.name);
            HandData handData = arg0.interactorObject.transform.GetComponentInChildren<HandData>();
            DisableHandDataAnimation(handData);
            SetHandDataValues(handData, leftHandData);
            SetHandData(handData, targetHandPosition, targetHandRotation, targetFingerRotations);
        }
    }

    private Vector3 CorrectScale(Vector3 position, Vector3 scale)
    {
        return new Vector3(position.x / scale.x, position.y / scale.y, position.z / scale.z);
    }

    private void EnableHandDataAnimation(HandData handData)
    {
        handData.anim.enabled = true;
    }

    private void DisableHandDataAnimation(HandData handData)
    {
        handData.anim.enabled = false;
    }

    private void SetHandDataValues(HandData h1, HandData h2)
    {
        initialHandPosition = CorrectScale(h1.root.localPosition, h1.root.localScale);
        targetHandPosition = CorrectScale(h2.root.localPosition, h2.root.localScale);

        initialHandRotation = h1.root.localRotation;
        targetHandRotation = h2.root.rotation;

        initialFingerRotations = new Quaternion[h1.bones.Length];
        targetFingerRotations = new Quaternion[h2.bones.Length];

        for (int i = 0; i < h1.bones.Length; i++)
        {
            initialFingerRotations[i] = h1.bones[i].localRotation;
            targetFingerRotations[i] = h2.bones[i].localRotation;
        }
    }

    private void SetHandData(HandData handData, Vector3 newPosition, Quaternion newRotation, Quaternion[] newBonesRotation)
    {
        handData.root.localPosition = newPosition;
        handData.root.localRotation = newRotation;

        for (int i = 0; i < newBonesRotation.Length; i++)
        {
            handData.bones[i].localRotation = newBonesRotation[i];
        }
    }
}

손목 위치가 안맞는다

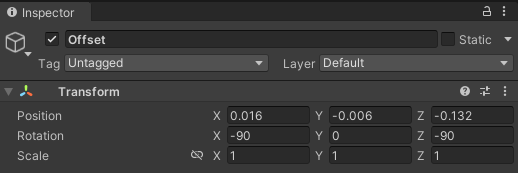

Offset을 변경해서 마춰준다

오른손도 해줍니다

using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using UnityEngine.Serialization;
using UnityEngine.XR.Interaction.Toolkit;

public class HandPose : MonoBehaviour
{
    public HandData handDataRef;
    public XRGrabInteractable grabInteractable;

    private Vector3 startingHandPosition;
    private Vector3 finalHandPosition;
    private Quaternion startingHandRotation;
    private Quaternion finalHandRotation;
    private Quaternion[] startingFingerRotaions;
    private Quaternion[] finalFingerRotations;

    void Start()
    {
        grabInteractable.selectEntered.AddListener(this.SetupPose);
        grabInteractable.selectExited.AddListener(this.UnSetPose);
    }

    private void UnSetPose(SelectExitEventArgs arg0)
    {
        if (arg0.interactorObject is XRDirectInteractor)
        {
            Debug.LogFormat("UnSetPose: <color=yellow>{0}</color>", arg0.interactorObject.transform.name);
            HandData handData = arg0.interactorObject.transform.GetComponentInChildren<HandData>();
            handData.anim.enabled = true;
            //handData.gameObject.SetActive(false);

            //SetHandDataValues(handData, leftHandData);
            SetHandData(handData, startingHandPosition, startingHandRotation, startingFingerRotaions);

            handData.gameObject.transform.localPosition = Vector3.zero;
            handData.gameObject.transform.localRotation = Quaternion.identity;
        }
    }

    private void SetupPose(SelectEnterEventArgs arg0)
    {
        if (arg0.interactorObject is XRDirectInteractor)
        {

            Debug.LogFormat("SetupPose: <color=yellow>{0}</color>", arg0.interactorObject.transform.name);
            HandData handData = arg0.interactorObject.transform.GetComponentInChildren<HandData>();
            handData.anim.enabled = false;


            //handData.gameObject.SetActive(false);

            SetHandDataValues(handData, handDataRef);
            SetHandData(handData, finalHandPosition, finalHandRotation, finalFingerRotations);

            handData.gameObject.transform.localPosition = Vector3.zero;
            handData.gameObject.transform.localRotation = Quaternion.identity;


        }
    }

    public void SetHandDataValues(HandData h1, HandData h2)
    {
        // startingHandPosition = h1.root.localPosition;
        // finalHandPosition = h2.root.localPosition;

        startingHandPosition = new Vector3(h1.root.localPosition.x / h1.root.localScale.x,
            h1.root.localPosition.y / h1.root.localScale.y, h1.root.localPosition.z / h1.root.localScale.z);
        finalHandPosition = new Vector3(h2.root.localPosition.x / h2.root.localScale.x,
            h2.root.localPosition.y / h2.root.localScale.y, h2.root.localPosition.z / h2.root.localScale.z);

        startingHandRotation = h1.root.localRotation;
        finalHandRotation = h2.root.rotation;

        startingFingerRotaions = new Quaternion[h1.bones.Length];
        finalFingerRotations = new Quaternion[h2.bones.Length];

        for (int i = 0; i < h1.bones.Length; i++)
        {
            startingFingerRotaions[i] = h1.bones[i].localRotation;
            finalFingerRotations[i] = h2.bones[i].localRotation;
        }
    }

    public void SetHandData(HandData handData, Vector3 newPosition, Quaternion newRotation,
        Quaternion[] newBonesRotation)
    {
        handData.root.localPosition = newPosition;
        handData.root.localRotation = newRotation;
        for (int i = 0; i < newBonesRotation.Length; i++)
        {
            handData.bones[i].localRotation = newBonesRotation[i];
        }
    }
}

Offset의 위치를 잘 맞춰주면 댄다

using System.Collections.Generic;
using UnityEngine;
using UnityEngine.XR;

public class Hand : MonoBehaviour
{
    public InputDeviceCharacteristics inputDeviceCharacteristics;

    private InputDevice _targetDevice;
    [SerializeField] private Animator _handAnimator;

    private void Start()
    {
        InitializeHand();
    }

    private void InitializeHand()
    {
        List<InputDevice> devices = new List<InputDevice>();
        InputDevices.GetDevicesWithCharacteristics(inputDeviceCharacteristics, devices);

        if (devices.Count > 0)
        {
            _targetDevice = devices[0];
        }
    }

    private void Update()
    {
        if (!_targetDevice.isValid)
        {
            InitializeHand();
        }
        else
        {
            UpdateHand();
        }
    }

    private void UpdateHand()
    {
        SetAnimatorParameterValue(CommonUsages.grip, "Grip");
        SetAnimatorParameterValue(CommonUsages.trigger, "Trigger");
    }

    private void SetAnimatorParameterValue(InputFeatureUsage<float> feature, string parameterName)
    {
        if (_targetDevice.TryGetFeatureValue(feature, out float value))
        {
            _handAnimator.SetFloat(parameterName, value);
        }
        else
        {
            _handAnimator.SetFloat(parameterName, 0);
        }
    }
}

using System;
using System.Collections;
using System.Collections.Generic;
using UnityEditor;
using UnityEngine;
using UnityEngine.XR.Hands;

public class HandData : MonoBehaviour
{
    public enum HandType
    {
        Left, Right
    }

    public HandType handType;
    public Transform root;
    public Animator anim;
    public Transform[] bones;

}

using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using UnityEngine.Serialization;
using UnityEngine.XR.Interaction.Toolkit;

public class HandPose : MonoBehaviour
{
    public HandData handDataRef;
    public XRGrabInteractable grabInteractable;

    private Vector3 startingHandPosition;
    private Vector3 finalHandPosition;
    private Quaternion startingHandRotation;
    private Quaternion finalHandRotation;
    private Quaternion[] startingFingerRotaions;
    private Quaternion[] finalFingerRotations;

    void Start()
    {
        grabInteractable.selectEntered.AddListener(this.SetupPose);
        grabInteractable.selectExited.AddListener(this.UnSetPose);
    }

    private void UnSetPose(SelectExitEventArgs arg0)
    {
        if (arg0.interactorObject is XRDirectInteractor)
        {
            Debug.LogFormat("UnSetPose: <color=yellow>{0}</color>", arg0.interactorObject.transform.name);
            HandData handData = arg0.interactorObject.transform.GetComponentInChildren<HandData>();
            handData.anim.enabled = true;
            //handData.gameObject.SetActive(false);

            //SetHandDataValues(handData, leftHandData);
            SetHandData(handData, startingHandPosition, startingHandRotation, startingFingerRotaions);

            handData.gameObject.transform.localPosition = Vector3.zero;
            handData.gameObject.transform.localRotation = Quaternion.identity;
        }
    }

    private void SetupPose(SelectEnterEventArgs arg0)
    {
        if (arg0.interactorObject is XRDirectInteractor)
        {

            Debug.LogFormat("SetupPose: <color=yellow>{0}</color>", arg0.interactorObject.transform.name);
            HandData handData = arg0.interactorObject.transform.GetComponentInChildren<HandData>();
            handData.anim.enabled = false;


            //handData.gameObject.SetActive(false);

            SetHandDataValues(handData, handDataRef);
            SetHandData(handData, finalHandPosition, finalHandRotation, finalFingerRotations);

            handData.gameObject.transform.localPosition = Vector3.zero;
            handData.gameObject.transform.localRotation = Quaternion.identity;


        }
    }

    public void SetHandDataValues(HandData h1, HandData h2)
    {
        // startingHandPosition = h1.root.localPosition;
        // finalHandPosition = h2.root.localPosition;

        startingHandPosition = new Vector3(h1.root.localPosition.x / h1.root.localScale.x,
            h1.root.localPosition.y / h1.root.localScale.y, h1.root.localPosition.z / h1.root.localScale.z);
        finalHandPosition = new Vector3(h2.root.localPosition.x / h2.root.localScale.x,
            h2.root.localPosition.y / h2.root.localScale.y, h2.root.localPosition.z / h2.root.localScale.z);

        startingHandRotation = h1.root.localRotation;
        finalHandRotation = h2.root.rotation;

        startingFingerRotaions = new Quaternion[h1.bones.Length];
        finalFingerRotations = new Quaternion[h2.bones.Length];

        for (int i = 0; i < h1.bones.Length; i++)
        {
            startingFingerRotaions[i] = h1.bones[i].localRotation;
            finalFingerRotations[i] = h2.bones[i].localRotation;
        }
    }

    public void SetHandData(HandData handData, Vector3 newPosition, Quaternion newRotation,
        Quaternion[] newBonesRotation)
    {
        handData.root.localPosition = newPosition;
        handData.root.localRotation = newRotation;
        for (int i = 0; i < newBonesRotation.Length; i++)
        {
            handData.bones[i].localRotation = newBonesRotation[i];
        }
    }
}

using System.Collections;
using System.Collections.Generic;
using UnityEngine;
//This will allow us to get InputDevice
using UnityEngine.XR;

public class InputReader : MonoBehaviour
{
//Creating a List of Input Devices to store our Input Devices in
    List<InputDevice> inputDevices = new List<InputDevice>();

// Start is called before the first frame update
    void Start()
    {
//We will try to Initialize the InputReader here, but all components may not be loaded
        InitializeInputReader();
    }

//This will try to initialize the InputReader by getting all the devices and printing them to the debugger.
    void InitializeInputReader()
    {
        InputDevices.GetDevices(inputDevices);

        foreach (var inputDevice in inputDevices)
        {
            Debug.Log(inputDevice.name + " " + inputDevice.characteristics);
        }
    }

// Update is called once per frame
    void Update()
    {
//We should have a total of 3 Input Devices. If it’s less, then we try to initialize them again.
        if (inputDevices.Count < 2)
        {
            InitializeInputReader();
        }
    }
}

'VR > XR Interaction Toolkit' 카테고리의 다른 글

[OpenXR] Ray Interactor (XR Interaction Toolkit Movement 타입 차이점) (0)	2023.12.28
[OpenXR] XR Interaction Toolkit 2.4.3 (Two Hand Grab) (0)	2023.12.28
XR Interaction Toolkit Animated Hands (Grip, Pinch) (0)	2023.12.27
Access hand data from Unity components in the scene (0)	2023.12.27
XR Interaction Toolkit 2.4.3 OpenXR Throw Object (0)	2023.12.27

{ 일등하이 :Unity3D }
