LayerMask
Unity3D 2019. 5. 1. 09:54반응형
https://answers.unity.com/questions/8715/how-do-i-use-layermasks.html
How do I use layermasks? - Unity Answers
answers.unity.com
https://docs.unity3d.com/ScriptReference/LayerMask.html
Unity - Scripting API: LayerMask
A GameObject can use up to 32 LayerMasks supported by the Editor. The first 8 of these Layers are specified by Unity; the following 24 are controllable by the user. Bitmasks represent the 32 Layers and define them as true or false. Each bitmask describes w
docs.unity3d.com
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
|
using System;
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
public class TestLayerMask : MonoBehaviour
{
// Start is called before the first frame update
// 인스턴스가 활성화된 경우에만 호출
void Start()
{
//32비트 레이어 마스크 지원

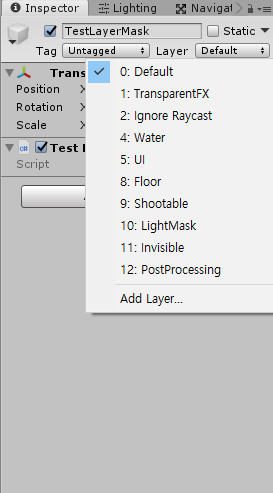

int floorLayer = LayerMask.NameToLayer("Floor");
string floorLayerName = LayerMask.LayerToName(floorLayer);
int floorLayerMask1 = LayerMask.GetMask(floorLayerName);
int floorLayerMask2 = 1 << floorLayer;
string strBinaryFloorLayer = Convert.ToString(floorLayerMask1, 2);
//floorLayer: 8, floorLayerName: Floor, floorLayerMask1: 256, floorLayerMask2: 256
Debug.LogFormat("floorLayer: {0}, floorLayerName: {1}, floorLayerMask1: {2}, floorLayerMask2: {3}", floorLayer, floorLayerName, floorLayerMask1, floorLayerMask2);
//100000000
//0000 0000 0000 0000 0000 0001 0000 0000
Debug.LogFormat("binaryFloorLayer: {0}", strBinaryFloorLayer);
int shootableLayer = LayerMask.NameToLayer("Shootable");
string shootableLayerName = LayerMask.LayerToName(shootableLayer);
int shootableLayerMask1 = LayerMask.GetMask(shootableLayerName);
int shootableLayerMask2 = 1 << shootableLayer;
string strBinaryShootableLayer = Convert.ToString(shootableLayerMask2, 2);
//shootableLayer: 9, shootableLayerName: Shootable, shootableLayerMask1: 512, shootableLayerMask2: 512
Debug.LogFormat("shootableLayer: {0}, shootableLayerName: {1}, shootableLayerMask1: {2}, shootableLayerMask2: {3}", shootableLayer, shootableLayerName, shootableLayerMask1, shootableLayerMask2);
//100000000
//0000 0000 0000 0000 0000 0010 0000 0000
Debug.LogFormat("strBinaryShootableLayer: {0}", strBinaryShootableLayer);
//Or
//768
//1100000000
//0000 0000 0000 0000 0000 0011 0000 0000
var orLayerMask = floorLayerMask1 | shootableLayerMask1;
Debug.LogFormat("orLayerMask: {0}", orLayerMask);
string strBinaryOrLayer = Convert.ToString(orLayerMask, 2);
Debug.LogFormat("strBinaryOrLayer: {0}", strBinaryOrLayer);
//Not
var notLayerMask = ~orLayerMask;
//strBinaryNotLayer: -769
Debug.LogFormat("notLayerMask: {0}", notLayerMask);
string strBinaryNotLayer = Convert.ToString(notLayerMask, 2);
//strBinaryNotLayer: 11111111111111111111110011111111
Debug.LogFormat("strBinaryNotLayer: {0}", strBinaryNotLayer);
var allLayer = -1;
string allBinaryLayer = Convert.ToString(allLayer, 2);
//allBinaryLayer: 11111111111111111111111111111111
Debug.LogFormat("allBinaryLayer: {0}", allBinaryLayer);
//And
var andLayerMask = floorLayerMask1 & allLayer;
//andLayerMask: 256
Debug.LogFormat("andLayerMask: {0}", andLayerMask);
string strBinaryAndLayer = Convert.ToString(andLayerMask, 2);
//strBinaryAndLayer: 100000000
//strBinaryAndLayer: 0000 0000 0000 0000 0000 0001 0000 0000
/*
*
* 1111 1111 1111 1111 1111 1111 1111 1111
0000 0000 0000 0000 0000 0001 0000 0000
---------------------------------------
0000 0000 0000 0000 0000 0001 0000 0000
*/
Debug.LogFormat("strBinaryAndLayer: {0}", strBinaryAndLayer);
}
}
|
